Tyre Coupling
Utkarsh Tyre type Coupling
A split tyre is attached to two hubs using adaptor
plates held together under bolt load. An optimized fiber
reinforced tyre increases the torque carrying capacity
without sacrificing flexibility. This is an elastomer in
shear type coupling. Under extreme overload conditions
tyre is torn apart, disconnecting the driving and driven
equipment, which would guard them against damage. Tyre
type coupling provides highest torsional flexibility and
misalignment capability (up to 4° angular). The axial
flexibility of the tyre couplings allows it to
accommodate a large amount of end float as well. Compact
design improves the torque carrying capacity to length
ratio. During maintenance tyre can be replaced easily
without disturbing the setup. Because there are no
rubbing surfaces, dirt or other abrasive materials do
not shorten the life of the coupling.

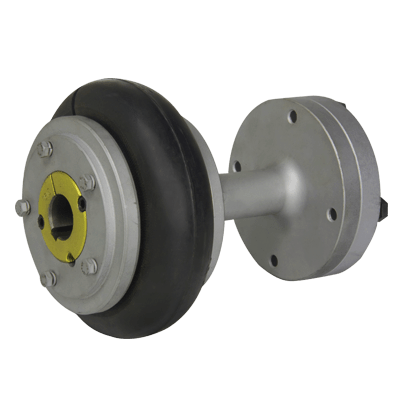

Utkarsh Tyre type Coupling
- Spacer makes maintenance more efficient and easy as a space between two shafts up to DBSE is available
- No requirement of re-aligning dismanting of coupling
Utkarsh Tyre type coupling with taper bush
A split tyre is attached to two hubs using adaptor
plates held together under bolt load. An optimized fiber
reinforced tyre increases the torque carrying capacity
without sacrificing flexibility. This is an elastomer in
shear type coupling. Under extreme overload conditions
tyre is torn apart, disconnecting the driving and driven
equipment, which would guard them against damage. Tyre
type coupling provides highest torsional flexibility and
misalignment capability (up to 4° angular). The axial
flexibility of the tyre couplings allows it to
accommodate a large amount of end float as well. Compact
design improves the torque carrying capacity to length
ratio. During maintenance tyre can be replaced easily
without disturbing the setup. Because there are no
rubbing surfaces, dirt or other abrasive materials do
not shorten the life of the coupling.
Unique Transmission Tyre Couplings
- Highly Flexible and resilient
- Absorbs large Misalignment
- Low torsional stiffness
- Dampens shock & Vibration
- Flexible element easily replaceable in site
- Ideally suitable for Diesel Engine Drives , Fans , Mills , Compressors ,Rolling Mills Pumps, conveyors , DG Sets.
- Available for reputed makes of Diesel Engines and compressors.
- Custom Design for special Requirements
- Torsional Vibration Calculation on request
- No Lubrication . Minimum Maintenance
- No expensive downtime.
- Flexible element is made of Rubber reinforced with Nylon Chords.
- Available in Series PH, PX, TC & U
- PH Series has largest range. These have flexible member firmly bolted to clamping elements. There is no possibility of Tyre slipping out even in case of imperfect installation.
- Available for Maximum torques upto 420000 Nm Coupling Diameter upto 1250 mm.
- Couplings with Brake Drum available.
- Also available with magic Grip Bushing for Quick fitment & removal.
