Linear actuator
VET - 830P
- Voltage: 12/24/36/48V
- The maximum load can reach 7000N
- Speed: 5.5mm-35mm/s
- Protection grade: IP65
- The product is suitable for various industrial automation solutions
- Anti -corrosion, anti-oxidation, maintenance-free, can effectively replace hydraulic, pneumatic, oil cylinder and other solutions
- External limit switch, adjustable, can be equipped with potentiometer, Hall feedback device
- Long service life
VET - 820
- Voltage: 12/24/36/48V
- The maximum load can reach 2500N
- Protection grade: IP66
- The product is suitable for various industrial automation solutions
- Anti -corrosion, anti-oxidation, maintenance-free, can effectively replace hydraulic, pneumatic, oil cylinder and other solutions
- Long service life
VET - 830
- Compact structure, short installation size, easy to use
- Built-in limit switch and dual clutch protection, can be equipped with Hall feedback signal device
- Maintenance free
- IP65 protection level
- This series of electric push rods are mainly used in industrial fields
- The maximum load is 4000N

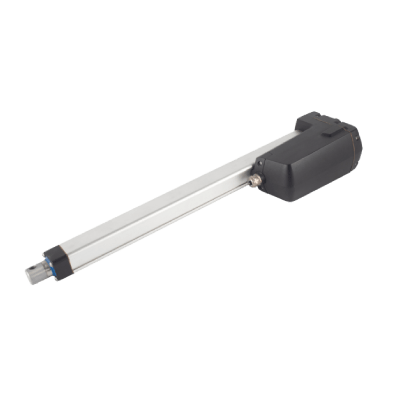

VET - 805G
- Voltage: 12/24/36/48V
- The maximum load can reach 12000N
- Speed: 6mm-37mm/s
- Protection grade: IP66
- The product is suitable for various industrial automation solutions

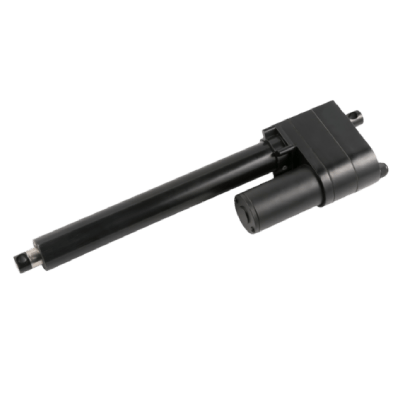

VET - 808
- Voltage: 12/24/36/48V
- Stroke: 50mm-600mm (optional)
- Speed: 5mm-35mm/s
- IP65 protection level
- The maximum load can reach 10000N
- Built-in limit switch and double clutch protection; Potentiometer and Hall feedback device can be installed
VET - 01 Linear Actuator
- Input voltage: 24V/12V DC
- Load capacity: 6000N
- Speed: 4-30mm/s
- Stroke: Customize
- Type of duty: 10%, 2min. on / 18min. off
- Limit switches: Inner
- Operation temperature: -15℃ ~ 45℃
- Color: Black or gray
- Protection class: IP43
VET - 011D Linear Actuator
- Input voltage: 24V/12V DC
- Load capacity: 6000N
- Speed: 5-36mm/s
- Stroke: Customize
- Type of duty: 10%, 2min. on / 18min. off
- Limit switches: Inner
- Operation temperature: -15℃ ~ 45℃
- Color: Black or gray
- Protection class: IP43
VET - 011B Linear Actuator
- Input voltage: 24V/12V DC
- Load capacity: 6000N
- Speed: 5-36mm/s
- Stroke: Customize
- Type of duty: 10%, 2min. on / 18min. off
- Limit switches: Inner
- Operation temperature: -15℃ ~ 45℃
- Color: Black or gray
- Protection class: IP43
VET - 011C Linear Actuator
- Input voltage: 24V/12V DC
- Load capacity: 6000N
- Speed: 4-30mm/s
- Stroke: Customize
- Type of duty: 10%, 2min. on / 18min. off
- Limit switches: Inner
- Operation temperature: -15℃ ~ 45℃
- Color: Black or gray
- Protection class: IP65

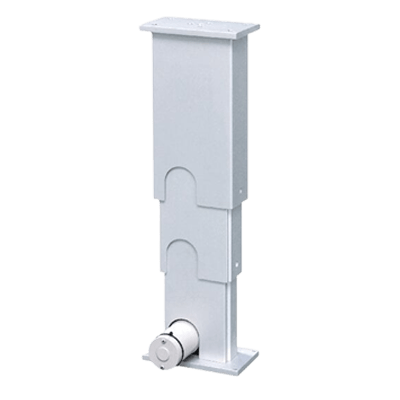

VET - 018B Linear Actuator
- Input voltage: 24V/12V DC
- Load capacity: 2000N
- Speed: 8-30mm/s
- Stroke: Customize
- Type of duty: 10%, 2min. on / 18min. off
- Limit switches: Inner
- Operation temperature: -15℃ ~ 45℃
- Color: Black or gray
- Protection class: IP20

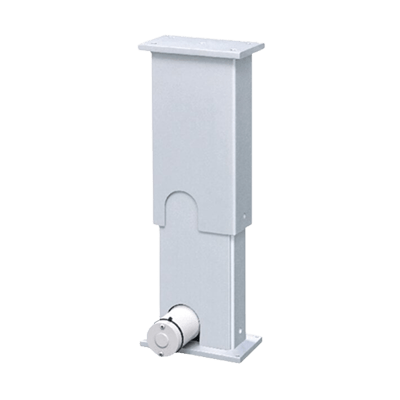

VET - 018 Linear Actuator
- Input voltage: 24V/12V DC
- Load capacity: 6000N
- Speed: 4-30mm/s
- Stroke: Customize
- Type of duty: 10%, 2min. on / 18min. off
- Limit switches: Inner
- Operation temperature: -15℃ ~ 45℃
- Color: Black or gray
- Protection class: IP20

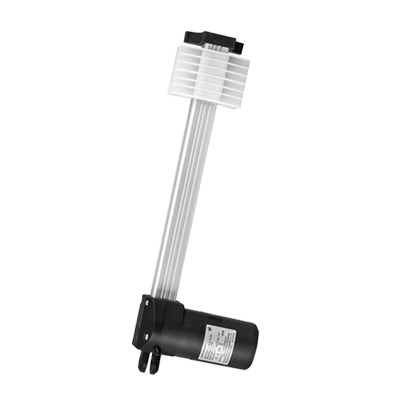

VET - 014D Linear Actuator
- Input voltage: 24V/12V DC
- Load capacity: 3000N
- Speed: 7mm/s(3000N), 35mm/s(750N)
- Stroke: Customize
- Type of duty: 10%, 2min. on / 18min. off
- Limit switches: Inner
- Operation temperature: -15℃ ~ 45℃
- Protection class: IP20

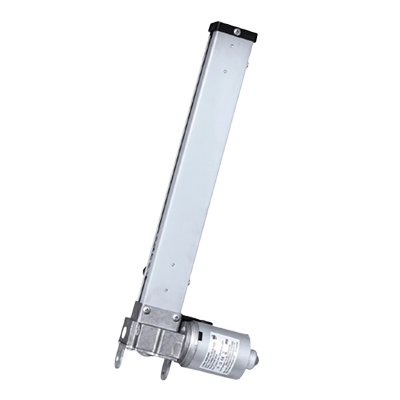

VET - 014C Linear Actuator
- Input voltage: 24V/12V DC
- Load capacity: 6000N
- Speed: 5mm/s(6000N), 8mm/s(750N)
- Standard stroke: 243mm
- Type of duty: 10%, 2min. on / 18min. off
- Limit switches: Inner
- Operation temperature: -15℃ ~ 45℃
- Protection class: IP20

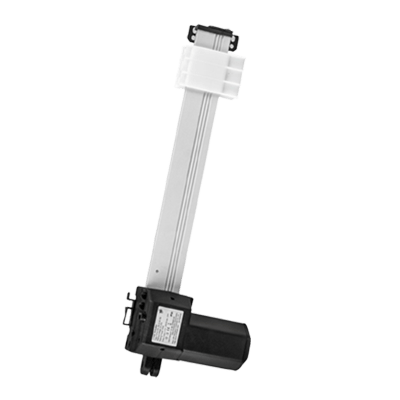

VET - 014 Linear Actuator
- Input voltage: 24V/12V DC
- Load capacity: 4000N
- Speed: 18mm/s(1500N), 35mm/s(750N)
- Stroke: Customize
- Type of duty: 10%, 2min. on / 18min. off
- Limit switches: Inner
- Operation temperature: -15℃ ~ 45℃
- Protection class: IP20
VET - 823
- Voltage: 12/24V DC
- Speed: up to 15mm/s
- Maximum load: 2000N
- Low noise, silent electric push rod
VET - 810
● Low noise and powerful actuator.
● Voltage:12V/24V DC
● Stroke:50mm-600mm(optional)
● Max speed:32mm/s
● For leisure bed and massage chair adjustment.
● Stable quality and long service life.
● Maintenance-free product with a long lifetime.
● CE certificate
● Max Force: 4000N.
● Voltage:12V/24V DC
● Stroke:50mm-600mm(optional)
● Max speed:32mm/s
● For leisure bed and massage chair adjustment.
● Stable quality and long service life.
● Maintenance-free product with a long lifetime.
● CE certificate
● Max Force: 4000N.

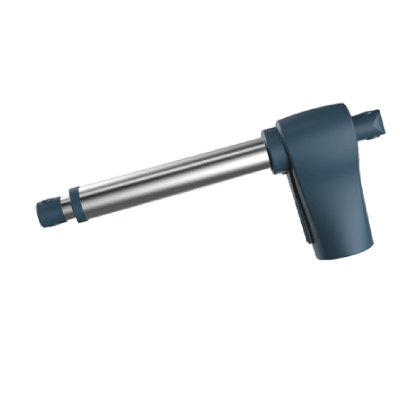

VET - 822
- Low noise electric push rod
- Voltage: 12V/24V
- Stroke: 50mm-600mm (optional)
- Noise: 30cm distance ≤50dB, 1m distance ≤40dB
- Speed: 5mm-16mm/s
- The maximum load is 6000N
- Widely used in various types of light industrial equipment, medical treatment, furniture and other industries.

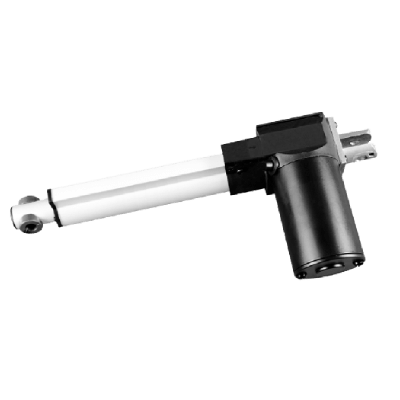

VET - 807
- Voltage: 12V/24V
- Low noise
- Stroke: 50-600mm (can be customized)
- The maximum load is 6000N
- Stable quality and long service life
- The product is suitable for household and medical fields

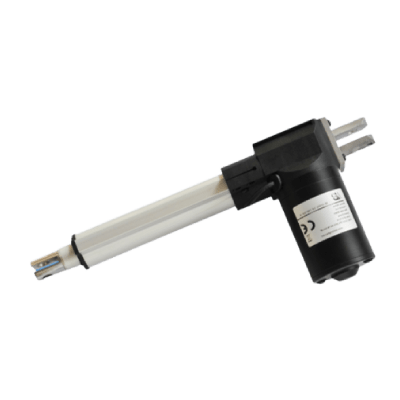

VET - 801
- Voltage: 12V/24V
- Stroke: 50mm-600mm (can be customized)
- The fastest speed: 25mm/s
- Stable quality and long service life
- The maximum load is 6000N
- Applicable to massage chairs, functional sofas, automatic window opening, medical equipment, etc.
VET - 825
- Low noise, waterproof electric push rod
- Voltage: 12/24/36/48V
- Stroke: 50mm-600mm (optional)
- Protection grade: IP66
- Speed: 6mm-15mm/s
- The maximum load is 2000N
VET - 823
- Voltage: 12/24V DC
- Speed: up to 15mm/s
- Maximum load: 2000N
- Low noise, silent electric push rod
VET - 801
- Voltage: 12V/24V
- Stroke: 50mm-600mm (can be customized)
- The fastest speed: 25mm/s
- Stable quality and long service life
- The maximum load is 6000N
- Applicable to massage chairs, functional sofas, automatic window opening, medical equipment, etc.
VET - 807
- Voltage: 12V/24V
- Low noise
- Stroke: 50-600mm (can be customized)
- The maximum load is 6000N
- Stable quality and long service life
- The product is suitable for household and medical fields
VET - 810
- Voltage: 12V/24V
- Low noise
- Maximum load: 4000N
- Stroke: 50-600mm (optional)
- The fastest speed: 32mm/s
- Applicable to massage chairs, functional sofas, automatic window opening, medical equipment, etc.
VET - 803
- Can be used in the furniture industry, such as massage chairs, functional sofas, etc.
- Low noise
- Voltage: 12V/24V
- Speed: 16mm/s, 32mm/s
- Slider drive
- Stable quality and long service life
- Maximum thrust: 1500N
VET - 830P
- Maximum dynamic load: 20KN, maximum half-way static load: 60KN
- Speed: ≥1.4mm/s
- Stroke: 500-850mm (optional)
- Duty cycle: 10%
- Voltage: 24VDC
- Applicable temperature: -40℃ to +65℃
- Options: Motor options: brushed, stepping motors
VET - 833T
- Maximum dynamic load: 22.5KN, maximum half-way static load: 133KN
- Speed: ≥0.7mm/s
- Stroke: 500-1000mm (optional)
- Duty cycle: 10%
- Voltage: 24VDC
- Applicable temperature: -40°C to +65°C
VET - 833F
- Maximum dynamic load: 6KN, maximum half-way static load: 20KN
- Speed: 1mm/s
- Stroke: 300-600mm (optional)
- Applicable temperature: -40°C to +65°C
- Product Features Heavy-
duty aluminum shell with
high thrust and
strong self-locking ability
is designed for
outdoor use
with
protection level IP65

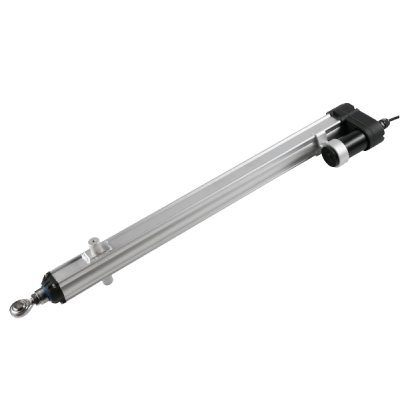

VET - 828
- The product is suitable for solar angle adjustment
- More than 500 hours of salt spray test
- Built-in limit switch, Hall sensor can be installed
- IP66 high protection level
- The product has passed the third-party waterproof, salt spray, high and low temperature, ultraviolet, and impact tests
- Maximum load: 15000N (static load 45000N)
- Speed: 1.4mm/s, 2mm/s, 3mm/s
- Stroke: 500mm, 700mm, 1000mm (can be customized)

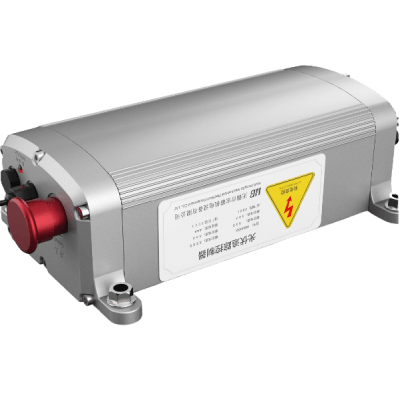

Controller 6800
The solar tracker control box developed
by our company can automatically
calculate the trajectory of the sun at
any time and the azimuth and altitude of
the location according to the local
longitude, latitude and time. In the
tracking phase, the system automatically
issues instructions according to the
tracking range, controls the operation
of the electric actuator, and adjusts
the tracking angle at regular intervals
so that the photovoltaic module is
always aligned with the current position
of the sun.
